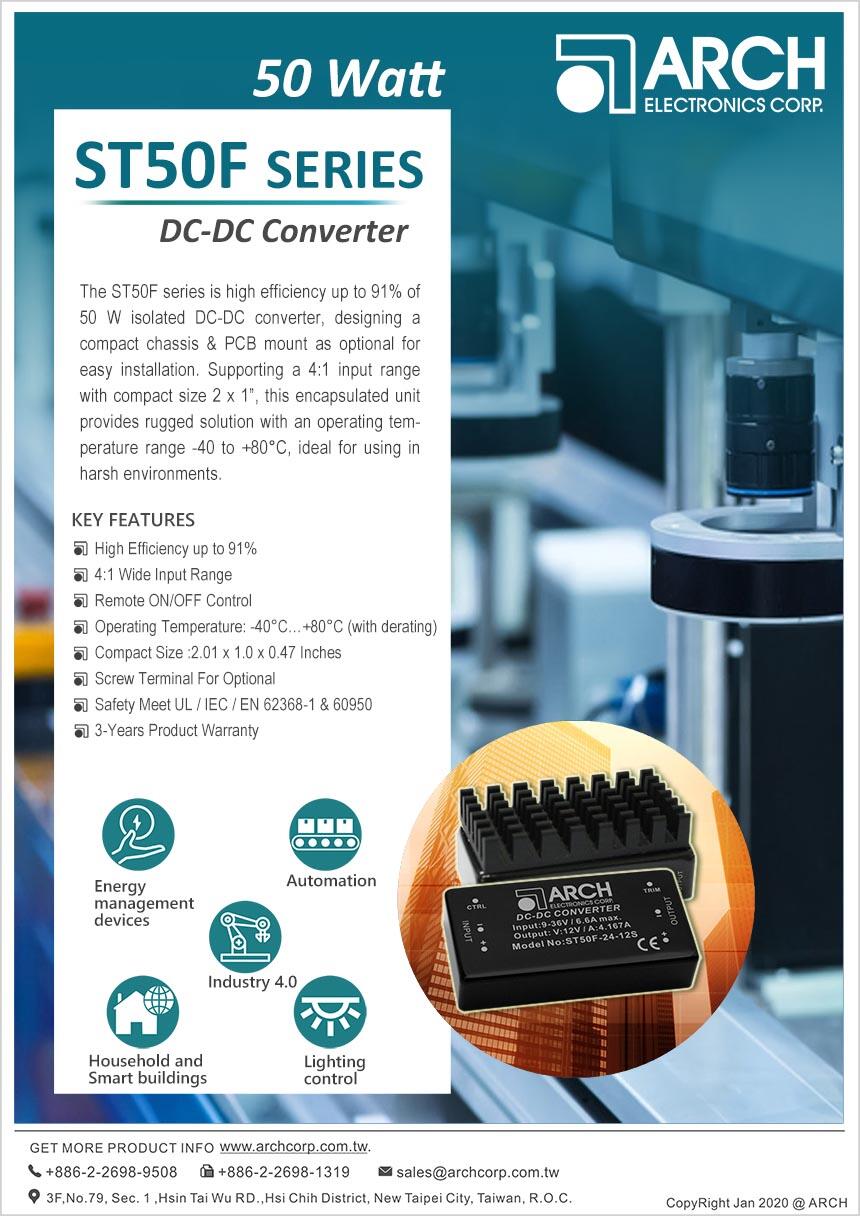

ST50F (X)
Series
DC-DC Converters
50 Watt
Size: 2.01" x 1.0" x 0.47"
I/P: 9~36 / 18 ~75 VDC
O/P:5, 12, 15, 24 VDC
I/O Isolation: 2250VDC
Operating Temp: -40~ +80°C
KEY FEATURES
| ◆ | Power Module for PCB Mountable | |||
| ◆ | Wide Input Range 4:1 | |||
| ◆ | High Efficiency up to 91% | |||
| ◆ | High Efficiency and Reliability | |||
| ◆ | Low Ripple and Noise | |||
| ◆ | Without Tantalum Capacitors Inside | |||
| ◆ | Remote ON/OFF Control | |||
| ◆ | Screw Terminal for Option | |||
| ◆ | Wide Operating Temperature: -40°C~+80°C with derating | |||
| ◆ | I/O Isolation: 2250VDC | |||
| ◆ | Safety Meet UL / IEC / EN 62368-1 & 60950 | |||
| ◆ | 3-Year Product Warranty | |||
MECHANICAL DIMENSIONS
| Package | Module |
| Dimensions | 51.0 x 25.5 x 12.0 mm 2.01 x 1.0 x 0.47 inches |
| ■ | Please refer to the PDF file published on the web site as the final version. | |||
| ■ | We reserve the right to make alterations in the product materials and specifications without prior notification and consent to improve reliability, function or design or otherwise. | |||
