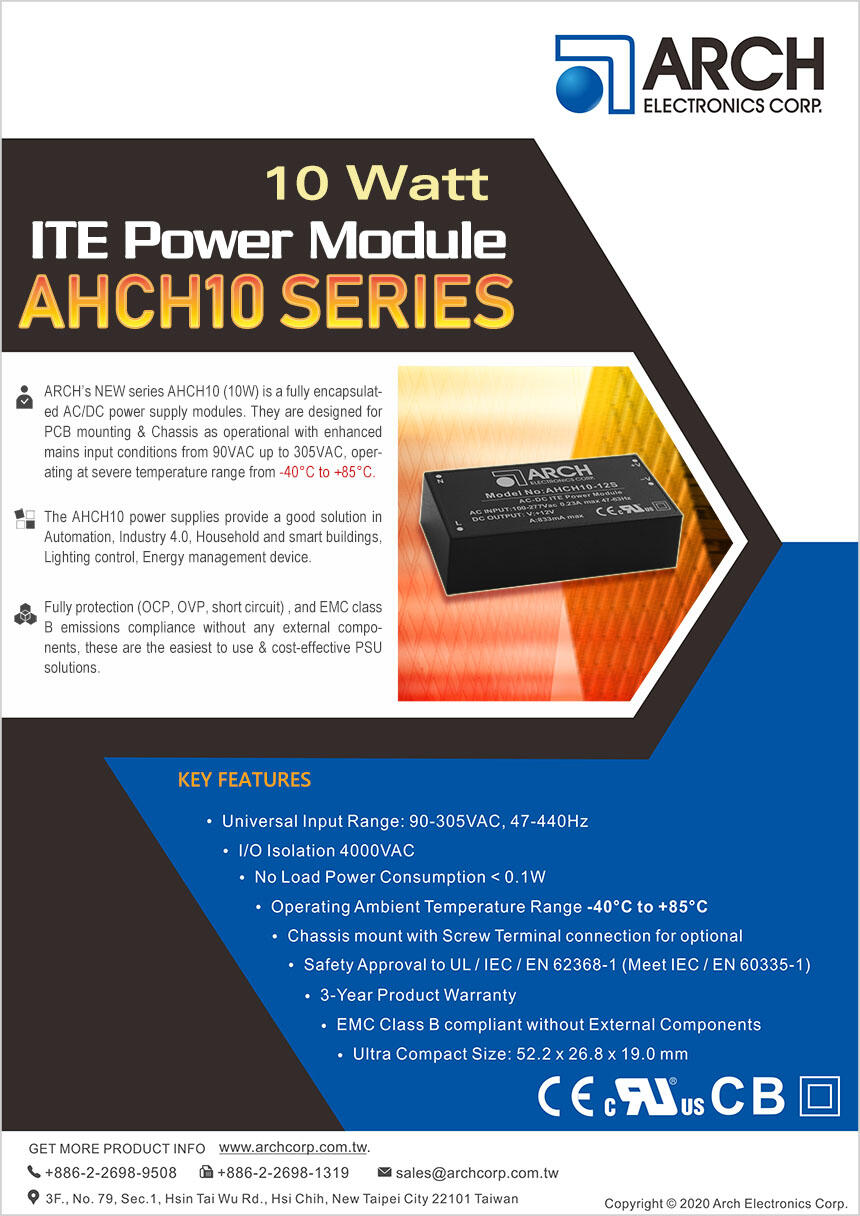

AHCH10
Series
AC-DC ITE Power Module
10 Watt
Size: 2.06" x 1.06" x 0.75"
I/P: 90~305VAC
O/P: 5, 12, 15, 24 VDC
I/O Isolation: 4000VAC
Operating Temp: -40~ +85°C
KEY FEATURES
| ◆ | Ultra Compact Power Module for PCB Mountable | |||
| ◆ | Universal Input Range 90-305VAC | |||
| ◆ | Low No-Load Power Consumption < 0.1W | |||
| ◆ | Cooling by free air convection | |||
| ◆ | Wide Operating Temperature: -40°C~+85°C with derating | |||
| ◆ | Operating attitude 5000m (UL / IEC / EN 62368-1) | |||
| ◆ | I/O Isolation: 4000VAC | |||
| ◆ | Screw Terminal for Option | |||
| ◆ | EMC Compliant without External Components | |||
| ◆ | Safety Approval to UL / IEC / EN 62368-1, IEC / EN 60950-1 | |||
| ◆ | Design meet IEC / EN 60335-1, IEC / EN 61558-2-16 | |||
| ◆ | 3-Year Product Warranty | |||
ELECTRICAL CHARACTERISTICS
| Package | Module |
| Dimensions | |
| 52.2 x 26.8 x 19.0 mm 2.06 x 1.06 x 0.75 inches | |
| No Load Power | <0.1W |
| Line Regulation | ±0.2% |
| Load Regulation | 5S,12S:±1% 15S,24S:±0.5% |
| Ripple and Noise | 5S,12S:<100mV 15S,24S:<150mV |
| Agency Approvals | |
| UL / IEC / EN 62368-1, IEC / EN 60950-1 | |
| Meet | IEC / EN 60335-1, IEC / EN 61558-2-16 |
| EMI | EN 55032 Class B |
| EMS | EN 55035 |
| ■ | Please refer to the PDF file published on the web site as the final version. | |||
| ■ | We reserve the right to make alterations in the product materials and specifications without prior notification and consent to improve reliability, function or design or otherwise. | |||
