NEW

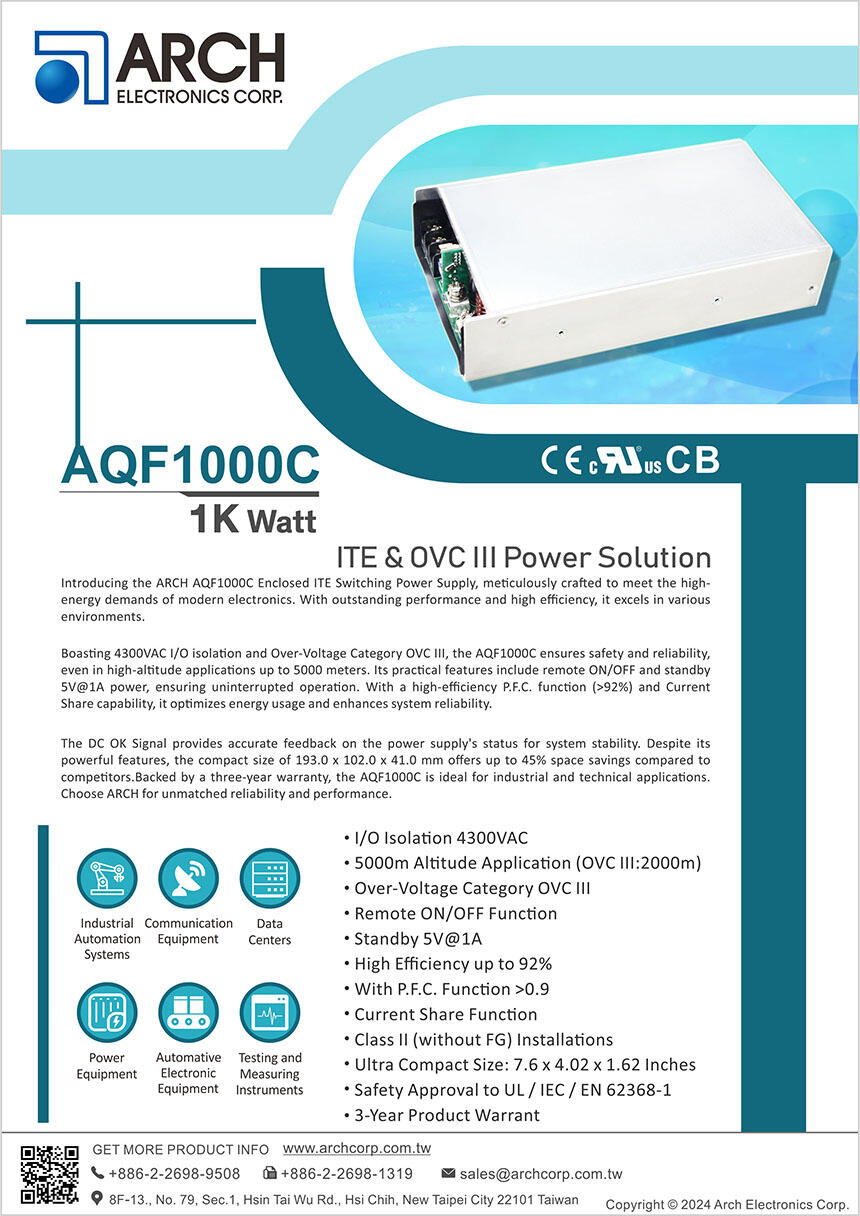

AQF1000C
Series
AC-DC ITE Power Supplies
AC-DC OVC III Power Supplies
1000 Watt
Size: 7.6" x 4.02" x 1.62"
I/P: 90~264VAC
O/P: 12, 24, 48 VDC
I/O Isolation: 4300VAC
Operating Temp: -20~ +70°C
KEY FEATURES
| ◆ | Enclosed Package | |||
| ◆ | Universal Input Range 90-264VAC | |||
| ◆ | 5000m Altitude Application (OVC III:2000m) | |||
| ◆ | Over-Voltage Category OVC III | |||
| ◆ | High Efficiency up to 92% | |||
| ◆ | With P.F.C. Function >0.9 | |||
| ◆ | Current Share Function | |||
| ◆ | Standby 5V@1A | |||
| ◆ | Wide Operating Temperature: -20°C~+70°C with derating | |||
| ◆ | I/O Isolation: 4300VAC | |||
| ◆ | Safety Approval to UL / IEC / EN 62368-1 | |||
| ◆ | 3-Year Product Warranty | |||
ELECTRICAL CHARACTERISTICS
| Package | Enclosed | |
| Dimensions | ||
| 193.0 x 102.0 x 41.0 mm 7.6 x 4.02 x 1.62 inches | ||
| Line Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| Ripple and Noise | 12S:160mV 24S:240mV 48S:480mV | |
| Agency Approvals | UL / IEC / EN 62368-1 | |
| EMI | ||
| Conducted | EN55032 Class B | |
| Radiated | EN55032 Class B | |
| EMS | EN 55035 | |
| ■ | Please refer to the PDF file published on the web site as the final version. | |||
| ■ | We reserve the right to make alterations in the product materials and specifications without prior notification and consent to improve reliability, function or design or otherwise. | |||
