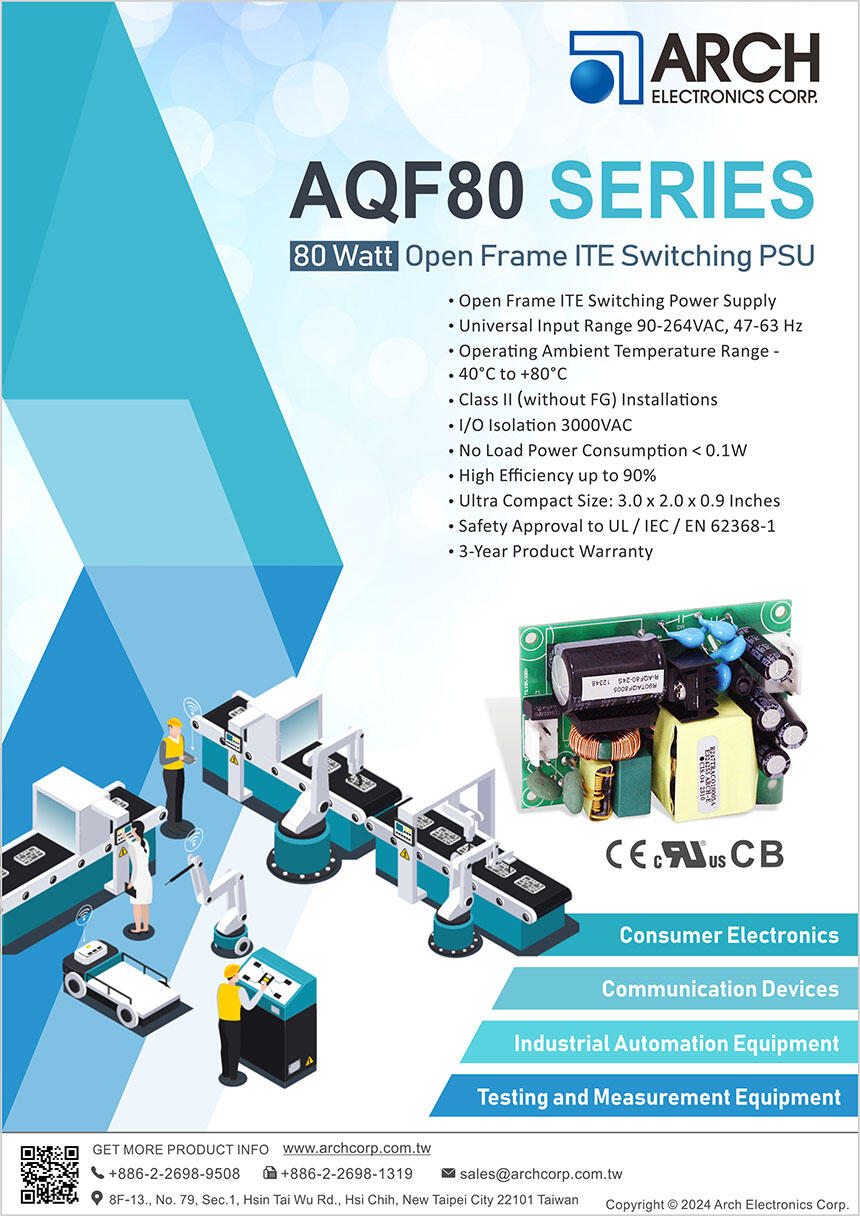

NEW
AQF80
Series
AC-DC ITE Power Supplies
available for N. America area
80 Watt
Size: 3" x 2"
I/P: 90~264VAC
O/P: 12, 24 VDC
I/O Isolation: 3000VAC
Operating Temp: -40~ +80°C
KEY FEATURES
| ◆ | Open Frame Package | |||
| ◆ | Universal Input Range 90-264VAC | |||
| ◆ | High Efficiency up to 90% | |||
| ◆ | Low No-Load Power Consumption < 0.1W | |||
| ◆ | Wide Operating Temperature: -40°C~+80°C with derating | |||
| ◆ | I/O Isolation: 3000VAC | |||
| ◆ | Safety Approval to UL / IEC / EN 62368-1 | |||
| ◆ | 3-Year Product Warranty | |||
ELECTRICAL CHARACTERISTICS
| Package | Open Frame | |
| Dimensions | ||
| 76.2 x 50.8 x 24.0 mm 3.0 x 2.0 x 0.94 inches | ||
| Line Regulation | ±1% | |
| Load Regulation | ±1% | |
| Ripple and Noise | 12S:120mV 24S:240mV | |
| Agency Approvals | UL / IEC / EN 62368-1 | |
| EMI | ||
| Conducted | EN 55032 Class B | |
| Radiated | EN 55032 Class B | |
| EMS | EN 55035 | |
| ■ | Please refer to the PDF file published on the web site as the final version. | |||
| ■ | We reserve the right to make alterations in the product materials and specifications without prior notification and consent to improve reliability, function or design or otherwise. | |||
