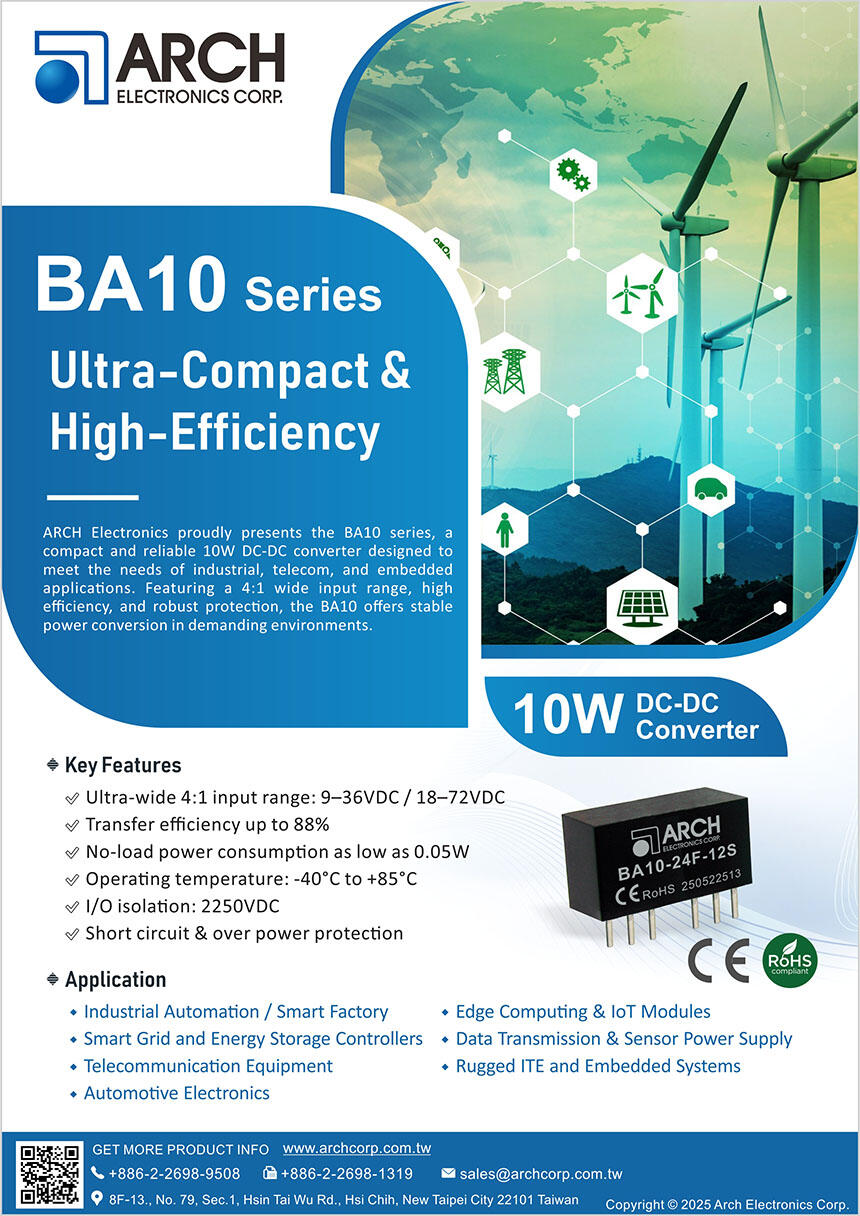

NEW
BA10
Series
DC-DC 電源轉換器
10 Watt
Size: 0.866" x 0.374" x 0.472"
I/P: 9~36 / 18 ~72 VDC
O/P:
5, 12, 15, 24 VDC
I/O Isolation: 2250VDC
Operating Temp: -40~ +85°C
KEY FEATURES
| ◆ | Power Module for PCB Mountable | |||
| ◆ | Wide Input Voltage range (4:1) | |||
| ◆ | Single and Dual Output | |||
| ◆ | Efficiency up to 88%(typ.) | |||
| ◆ | No-Load Power Consumption 0.12W (typ.) | |||
| ◆ | Input Under Voltage, Output Short Circuit, Over Current, | |||
| ◆ | Over Voltage Protections | |||
| ◆ | Remote ON/OFF Control for Option | |||
| ◆ | International Standard Pin-Out | |||
| ◆ | Wide Operating Temperature: -40°C~+85°C with derating | |||
| ◆ | I/O Isolation: 2250VDC | |||
| ◆ | 3-Year Product Warranty | |||
MECHANICAL DIMENSIONS
| Package | Module |
| Dimensions | 31.6 x 20.3 x 10.2 mm 1.244 x 0.8 x 0.4 inches |
| ■ | Please refer to the PDF file published on the web site as the final version. | |||
| ■ | We reserve the right to make alterations in the product materials and specifications without prior notification and consent to improve reliability, function or design or otherwise. | |||
